Model Viewer

Project Overview

Model Viewer is a real-time 3D viewer built with DirectX11 to load and render OBJ models. Features include Phong shading, correct tangent-space normal mapping, and an interactive debug UI for surface visualization and parameter tweaks.

Key Features:

  • Custom OBJ Loader supporting vertex normals, UVs, and materials.

  • Implemented Phong shading with diffuse, specular, ambient, and emissive lighting.

  • Support for debug visualization of normals, tangents, and bitangents.

  • Scene controls for sunlight direction, material toggles and basic movement.

🔹 Technologies Used: C++, DirectX 11, HLSL, OBJ File Parsing, CPU/GPU Mesh Processing.

Key Concepts

Throughout the development of the Model Viewer, I focused on several core graphics programming concepts:

  • Efficient OBJ File Parsing: Handling faces, normals, and materials efficiently for real-time rendering.

  • Phong Shading Model: Implementing diffuse, specular, ambient, and emissive components in HLSL.

  • Tangent Space Calculations: Ensuring correct normal maps & smooth shading using TBN basis vectors.

  • GPU Mesh Optimization: Reducing redundant calculations and improving performance for rendering.

  • Debug Visualization: Rendering normals, tangents, and bitangents for verification and debugging.

Challenges & Lessons Learned

🔹 Challenge 1: Loading & Parsing OBJ Files Efficiently

Issue: The OBJ format allows different types of face definitions (triangles, quads, polygons), and parsing them efficiently while supporting materials (usemtl, mtllib) was difficult.

Solution:

  • Implemented a custom OBJ parser that correctly extracts vertex positions, normals, and UVs.

  • Converted quads into triangles for proper rendering.

  • Ensured that materials were properly linked and loaded.

🔹 Challenge 2: Implementing Phong Shading with Correct Normal Transformations

Issue: Initial models had incorrect lighting due to improper normal transformations.

Solution:

  • Ensured normals are transformed correctly by applying the inverse transpose of the model matrix.

  • Implemented Phong shading using ambient, diffuse, specular, and emissive lighting components.

🔹 Challenge 3: Debugging Tangent Space Basis Vectors

Issue: Normal maps require tangent space calculations, and incorrect tangents lead to broken shading.

Solution:

  • Implemented TBN (Tangent, Bitangent, Normal) calculations for all vertices.

  • Verified the correctness by rendering debug tangent-space vectors.

💡 This project reinforced my ability to debug graphical issues, optimize file parsing, and correctly implement shading techniques.

Implementation Breakdown

Implementation Breakdown (How I Solved It)

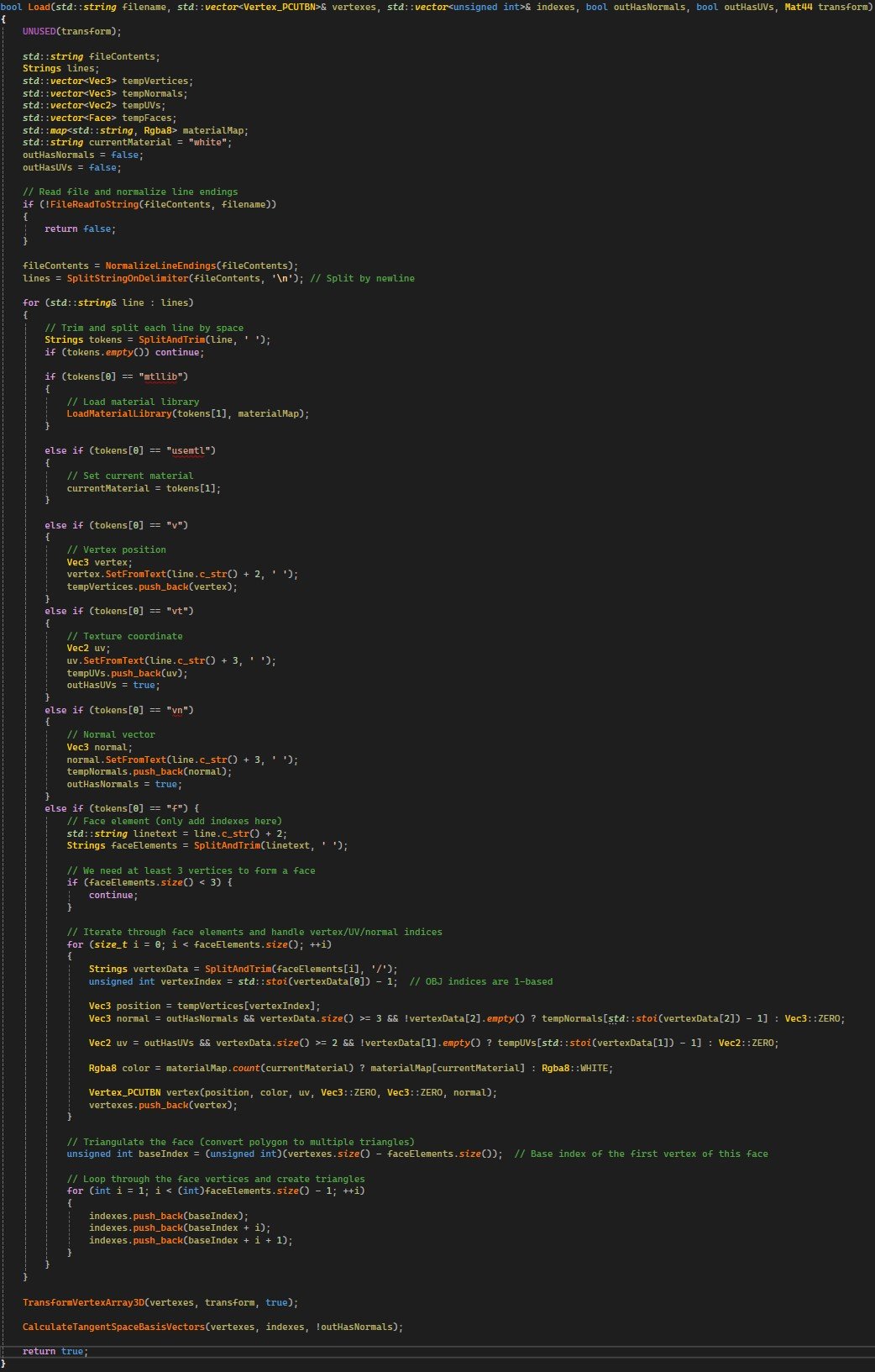

🔹 OBJ File Loading & Parsing

  • Implemented an OBJ file parser that extracts:

    • Geometric vertices (v)

    • Texture coordinates (vt)

    • Vertex normals (vn)

    • Polygon faces (f)

    • Material libraries (mtllib, usemtl)

  • Converted quad faces into triangles for compatibility.

  • Added a new function SplitAndTrim to get rid of any excess spaces and still have lines that are just the results of splitting on a token.

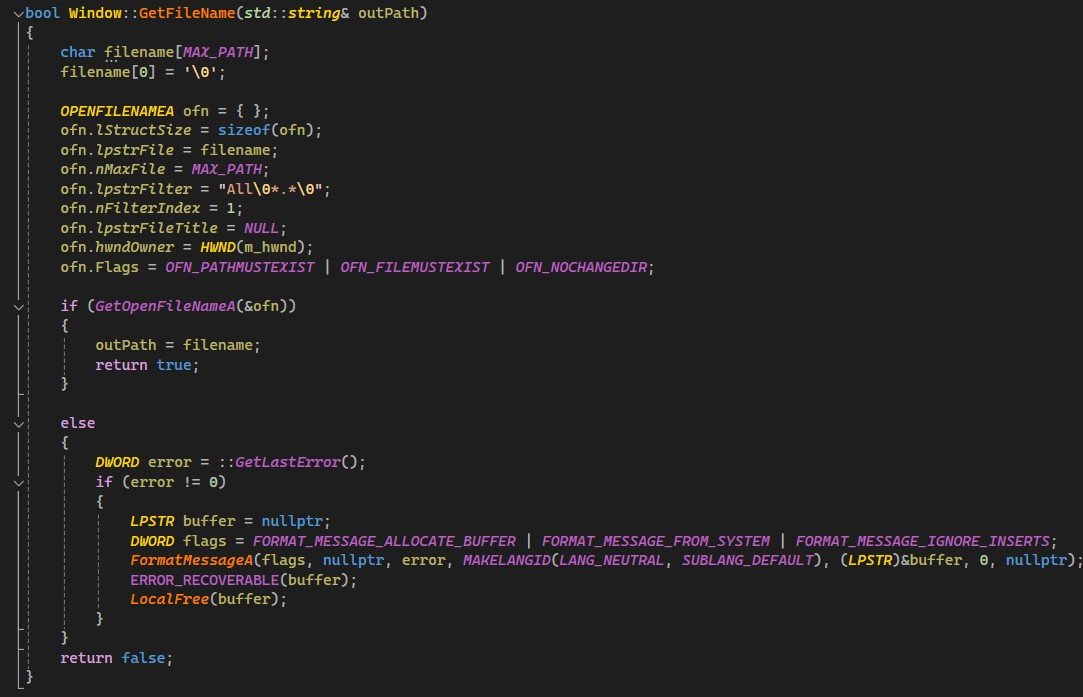

  • Allowed dynamic loading of .obj or .xml model files via file selection dialog.

🔹 Implementing Phong Shading in HLSL

To achieve realistic shading, I implemented Phong shading with the following lighting components:

Ambient - Constant low-level lighting (background light)

DiffuseLight - reflected evenly across the surface

SpecularShininess - or highlight effect based on camera angle

EmissiveSelf - lit surfaces, glowing effect

This also required an update to my lightConstants that I was using to achieve debug use.

Results & Showcase

What I Would Improve Next

While the core functionality is complete, there are several areas I would expand on if I continued developing this project:

  • UI Improvements: Integrate ImGui for a more flexible and user-friendly interface, allowing real-time parameter adjustments without hardcoded controls.

  • Expanded Format Support: Add loaders for FBX and glTF, providing support for animations, skeletons, and PBR materials.

  • Advanced Rendering Features: Introduce shadow mapping and physically based rendering (PBR) to push visual fidelity beyond simple Phong shading.

  • Performance Optimizations: Implement mesh caching and parallelized loading to improve performance when rendering high-poly models.

  • Tooling & Workflow: Package the viewer as a standalone tool, enabling artists and designers to inspect assets quickly during production pipelines.

These improvements would transform the project from a learning tool into a practical asset viewer that could slot into a real studio workflow.
