Project Overview
Nightbloom is a learning-focused graphics engine that demonstrates low-level Vulkan API usage, GPU synchronization patterns, and shader tooling development. The standout feature is a visual shader graph editor that generates GLSL, compiles to SPIR-V at runtime, and hot-reloads shaders without restarting the application.
🔹 Technologies Used: C++17, Vulkan 1.4, VMA, GLSL, SPIR-V, ImGui, GLM.
Key Features
Throughout the development of the Nightbloom Engine, I focused on several core graphics programming concepts:
Real-Time Shader Node Editor: Visual node-based shader authoring similar to Unity ShaderGraph or Unreal's Material Editor. Create shaders by connecting nodes, see results instantly.
Live SPIR-V Compilation: Edit shader graphs → Generate GLSL → Compile to SPIR-V → Hot-reload pipeline. No engine restart required.
Frames-in-Flight Architecture: Double-buffered command recording allows CPU to prepare frame N+1 while GPU renders frame N, maximizing throughput.
VMA Memory Management: Integrated Vulkan Memory Allocator with staging buffer pools, persistent mapping for uniforms, and efficient device-local uploads.

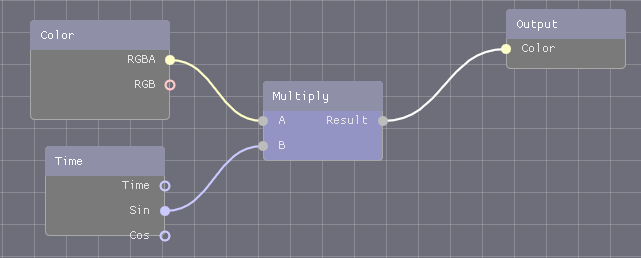

Shader Node Editor
🔹 Visual shader creation:
• Texture sampling with channel separation (R, G, B, A outputs)
• Math operations (Multiply, Add, Mix) with automatic type promotion
• Time-based animation nodes (Time, Sin, Cos)
• Topological sorting ensures correct evaluation order
• Type-aware connections (float automatically broadcasts to vec4)

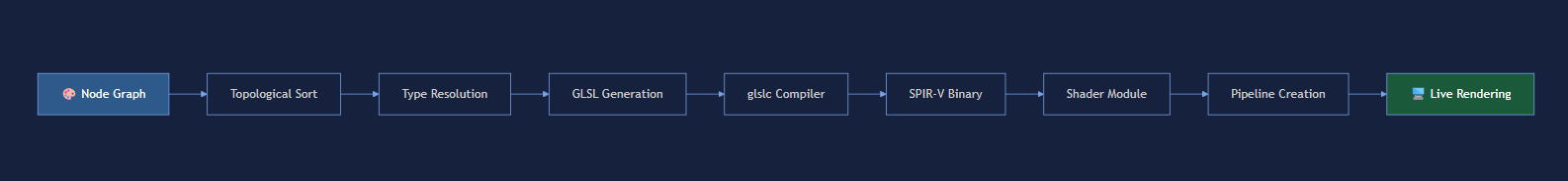

🔹 How It Works:
1. User creates and connects nodes visually
2. Graph is topologically sorted by dependencies
3. Each node emits its GLSL code snippet
4. Combined into complete vertex/fragment shaders
5. glslc compiles GLSL → SPIR-V
6. New pipeline created and swapped in live
System Architecture
🔹Seperation of Components:
• FrameSyncManager - Fences and semaphores for CPU/GPU synchronization
• ResourceManager - Buffer, texture, and shader lifecycle
• CommandRecorder - Command buffer recording and draw execution
• VulkanDescriptorManager - Descriptor set layouts, pools, and bindings
• VulkanPipelineAdapter - Abstracts pipeline creation behind generic interface
Frame Synchronization Model
Implementation
Vulkan requires explicit synchronization between CPU and GPU. The engine
implements a double-buffered frames-in-flight model:Fences (CPU ↔ GPU): CPU waits on a fence before reusing a frame slot's
resources, ensuring the GPU has finished with them.Semaphores (GPU ↔ GPU): Image acquisition signals a semaphore that the render pass waits on. Render completion signals another semaphore that presentation waits on.
Key Insight: imageAvailable semaphores are sized to MAX_FRAMES_IN_FLIGHT (2), while renderFinished semaphores are sized to swapchain image count (3). This handles swapchain images being acquired out of order.
🔹Code Sample: Frame Execution
Shader Compilation Pipeline
🔹Implementation
1. Graph Analysis
- Topological sort orders nodes by dependencies
- Type resolution propagates types through connections
- Float × Vec4 automatically promotes to Vec4 output
2. GLSL Generation
- Each node emits its code snippet
- Variables named node{id}_out{pin} to avoid collisions
- Uniforms and push constants automatically declared
3. SPIR-V Compilation
- Invokes glslc.exe to compile GLSL to SPIR-V
- Error messages captured and displayed in editor
4. Pipeline Hot-Reload
- New VkShaderModules created from SPIR-V
- New VkPipeline created with updated shaders
- Old pipeline destroyed after GPU finishes (fence sync)
🔹Code Sample: Frame Execution
What I Would Improve Next
While the core functionality is complete, there are several areas I would expand on if I continued developing this project:
Depth buffer — Currently rendering a single object. Adding a depth attachment to the render pass would enable correct multi-object rendering with proper occlusion.
Bindless Textures — The current implementation updates descriptor sets per draw call. Implementing descriptor indexing would allow all textures in a single bindless array, eliminating per-draw overhead and scaling to thousands of objects.
Async Shader Compilation — glslc currently blocks the main thread during compilation. Moving this to a worker thread with a callback system would prevent frame hitches when editing shaders.
Compute Shader Support — Adding compute pipeline infrastructure would enable GPU-driven effects like particle systems, culling, and eventually volumetric rendering.
Graph Serialization — Shader graphs currently reset on restart. Implementing JSON save/load would allow persistent material authoring and asset sharing.
Multi-Pass Rendering — Extending the render pass system to support shadow maps, deferred rendering, or post-processing chains.
Material System — Building on top of the shader graph to create reusable material instances with exposed parameters for artists.
These improvements would transform the project from a learning tool into a practical asset viewer that could slot into a real studio workflow.
